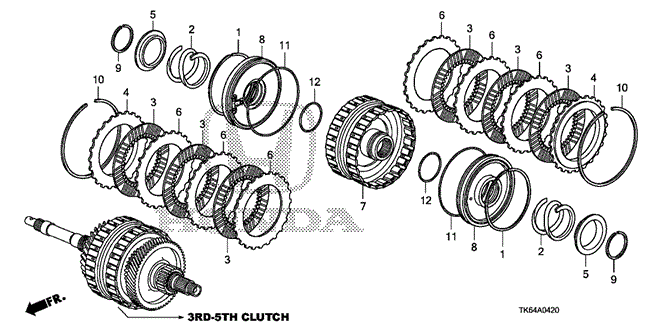

GUIDE, CLUTCH (3-5) in TRANSMISSION - AUTOMATIC/AT CLUTCH (3RD-5TH) for 2009 Honda FIT

GUIDE, CLUTCH (3-5) in TRANSMISSION - AUTOMATIC/AT CLUTCH (3RD-5TH) for 2009 Honda FIT #1
11
  • O-RING (110X2.2) (NOK) - $3.76
1
  • SPRING, CLUTCH WAVE - $6.53
6
  • PLATE, CLUTCH WAVE (2.0MM) - $5.98
8
  • PISTON, CLUTCH - $45.31
9
  • CIRCLIP (OUTER) (45MM) - $1.95
6
  • PLATE, CLUTCH WAVE (2.0MM) - $5.98
3
  • DISK, CLUTCH - $13.29
8
  • PISTON, CLUTCH - $45.31
3
  • DISK, CLUTCH - $13.29
3
  • DISK, CLUTCH - $13.29
12
  • O-RING (45.1X2.2) (NOK) - $3.02
10
  • RING, SNAP (129MM) - $4.48
6
  • PLATE, CLUTCH WAVE (2.0MM) - $5.98
5
  • SEAT, RETURN SPRING - $3.50
7
  • GUIDE, CLUTCH (3-5) - $226.52
2
  • SPRING, CLUTCH RETURN - $10.82
4
  • PLATE, CLUTCH END (9) (2.9MM) - $10.82
  • PLATE, CLUTCH END (4) (2.4MM) - $10.82
  • PLATE, CLUTCH END (8) (2.8MM) - $10.82
  • PLATE, CLUTCH END (6) (2.6MM) - $10.82
  • PLATE, CLUTCH END (5) (2.5MM) - $10.82
  • PLATE, CLUTCH END (7) (2.7MM) - $10.82
  • PLATE, CLUTCH END (2) (2.2MM) - $10.82
  • PLATE, CLUTCH END (1) (2.1MM) - $10.82
  • PLATE, CLUTCH END (3) (2.3MM) - $10.82
11
  • O-RING (110X2.2) (NOK) - $3.76
9
  • CIRCLIP (OUTER) (45MM) - $1.95
6
  • PLATE, CLUTCH WAVE (2.0MM) - $5.98
1
  • SPRING, CLUTCH WAVE - $6.53
5
  • SEAT, RETURN SPRING - $3.50
2
  • SPRING, CLUTCH RETURN - $10.82
10
  • RING, SNAP (129MM) - $4.48
12
  • O-RING (45.1X2.2) (NOK) - $3.02
3
  • DISK, CLUTCH - $13.29
3
  • DISK, CLUTCH - $13.29
4
  • PLATE, CLUTCH END (9) (2.9MM) - $10.82
  • PLATE, CLUTCH END (4) (2.4MM) - $10.82
  • PLATE, CLUTCH END (8) (2.8MM) - $10.82
  • PLATE, CLUTCH END (6) (2.6MM) - $10.82
  • PLATE, CLUTCH END (5) (2.5MM) - $10.82
  • PLATE, CLUTCH END (7) (2.7MM) - $10.82
  • PLATE, CLUTCH END (2) (2.2MM) - $10.82
  • PLATE, CLUTCH END (1) (2.1MM) - $10.82
  • PLATE, CLUTCH END (3) (2.3MM) - $10.82
3
  • DISK, CLUTCH - $13.29
6
  • PLATE, CLUTCH WAVE (2.0MM) - $5.98
6
  • PLATE, CLUTCH WAVE (2.0MM) - $5.98
No. Part # Part # / Description Qty Req. List Price Price
1 22537-RPC-003 22537-RPC-003 / SPRING, CLUTCH WAVE

2 $9.22 $6.53
2 22542-RPC-003 22542-RPC-003 / SPRING, CLUTCH RETURN

2 $15.28 $10.82
3 22545-RPC-003 22545-RPC-003 / DISK, CLUTCH

6 $18.77 $13.29
4 22569-RPC-003 22569-RPC-003 / PLATE, CLUTCH END (9) (2.9MM)

2 $15.28 $10.82
4 22564-RPC-003 22564-RPC-003 / PLATE, CLUTCH END (4) (2.4MM)

2 $15.28 $10.82
4 22568-RPC-003 22568-RPC-003 / PLATE, CLUTCH END (8) (2.8MM)

2 $15.28 $10.82
4 22566-RPC-003 22566-RPC-003 / PLATE, CLUTCH END (6) (2.6MM)

2 $15.28 $10.82
4 22565-RPC-003 22565-RPC-003 / PLATE, CLUTCH END (5) (2.5MM)

2 $15.28 $10.82
4 22567-RPC-003 22567-RPC-003 / PLATE, CLUTCH END (7) (2.7MM)

2 $15.28 $10.82
4 22562-RPC-003 22562-RPC-003 / PLATE, CLUTCH END (2) (2.2MM)

2 $15.28 $10.82
4 22561-RPC-003 22561-RPC-003 / PLATE, CLUTCH END (1) (2.1MM)

2 $15.28 $10.82
4 22563-RPC-003 22563-RPC-003 / PLATE, CLUTCH END (3) (2.3MM)

2 $15.28 $10.82
5 22633-RPC-003 22633-RPC-003 / SEAT, RETURN SPRING

2 $4.95 $3.50
6 22643-RMM-003 22643-RMM-003 / PLATE, CLUTCH WAVE (2.0MM)

6 $8.45 $5.98
7 22651-RMM-003 22651-RMM-003 / GUIDE, CLUTCH (3-5)

1 $319.95 $226.52
8 22670-RPC-003 22670-RPC-003 / PISTON, CLUTCH

2 $64.00 $45.31
9 90603-RPC-003 90603-RPC-003 / CIRCLIP (OUTER) (45MM)

2 $2.75 $1.95
10 90605-PX4-000 90605-PX4-000 / RING, SNAP (129MM)

2 $6.33 $4.48
11 91303-PF4-004 91303-PF4-004 / O-RING (110X2.2) (NOK)

2 $5.32 $3.76
12 91303-P0Z-003 91303-P0Z-003 / O-RING (45.1X2.2) (NOK)

2 $4.27 $3.02
