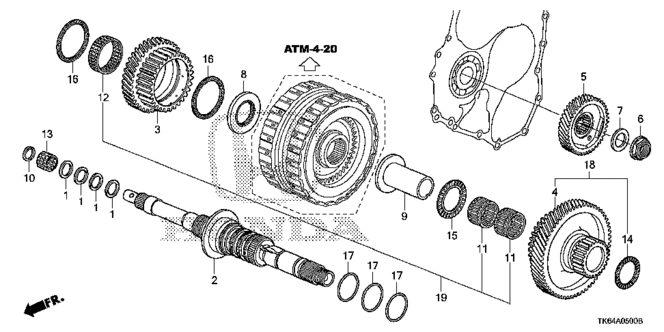

MAINSHAFT in TRANSMISSION - AUTOMATIC/AT MAINSHAFT for 2009 Honda FIT

MAINSHAFT in TRANSMISSION - AUTOMATIC/AT MAINSHAFT for 2009 Honda FIT #1
4
  • GEAR, MAINSHAFT FIFTH - $75.52
1
  • RING, SEALING (29MM) - $4.05
11
  • BEARING, NEEDLE (32X37X24) - $7.99
13
  • BEARING, NEEDLE (23X29X18) - $9.48
16
  • NEEDLE, THRUST (52.5X66.5X2) - $6.43
12
  • BEARING, NEEDLE (47X52X15.5) - $7.68
2
  • MAINSHAFT - $164.40
19
  • BEARING SET, NEEDLE - $22.62
1
  • RING, SEALING (29MM) - $4.05
1
  • RING, SEALING (29MM) - $4.05
16
  • NEEDLE, THRUST (52.5X66.5X2) - $6.43
1
  • RING, SEALING (29MM) - $4.05
18
  • GEAR SET, MAINSHAFT FIFTH - $101.29
17
  • O-RING (33X1.9) (ARAI) - $1.68
17
  • O-RING (33X1.9) (ARAI) - $1.68
7
  • WASHER, SPRING (22MM) - $5.38
3
  • GEAR, MAINSHAFT THIRD - $65.21
11
  • BEARING, NEEDLE (32X37X24) - $7.99
10
  • SET-RING (23MM) - $1.48
5
  • GEAR, MAINSHAFT IDLE - $48.27
8
  • WASHER, THRUST (40X63X3.800) - $8.94
  • WASHER, THRUST (40X63X3.875) - $8.94
  • WASHER, THRUST (40X63X3.900) - $8.94
  • WASHER, THRUST (40X63X3.925) - $8.94
  • WASHER, THRUST (40X63X3.750) - $8.94
  • WASHER, THRUST (40X63X3.950) - $8.94
  • WASHER, THRUST (40X63X3.775) - $8.94
  • WASHER, THRUST (40X63X4.000) - $8.94
  • WASHER, THRUST (40X63X3.975) - $8.94
  • WASHER, THRUST (40X63X3.825) - $8.94
  • WASHER, THRUST (40X63X3.850) - $8.94
15
  • NEEDLE, THRUST (32X51.5X2.5) - $6.43
9
  • COLLAR (27X32X60.5) - $14.15
17
  • O-RING (33X1.9) (ARAI) - $1.68
14
  • NEEDLE, THRUST (32X44X2) - $5.73
  • NEEDLE, THRUST (32X44X2) - $5.73
6
  • NUT, FLANGE (22MM) - $3.59
No. Part # Part # / Description Qty Req. List Price Price
1 22814-PRP-003 22814-PRP-003 / RING, SEALING (29MM)

4 $5.72 $4.05
2 23210-RPC-000 23210-RPC-000 / MAINSHAFT

1 $232.20 $164.40
3 23455-RPC-J00 23455-RPC-J00 / GEAR, MAINSHAFT THIRD

1 $92.10 $65.21
4 23481-RG5-000 23481-RG5-000 / GEAR, MAINSHAFT FIFTH

1 $106.67 $75.52
5 23511-RPC-000 23511-RPC-000 / GEAR, MAINSHAFT IDLE

1 $68.18 $48.27
6 90203-RPC-000 90203-RPC-000 / NUT, FLANGE (22MM)

1 $5.07 $3.59
7 90402-RPC-000 90402-RPC-000 / WASHER, SPRING (22MM)

1 $7.60 $5.38
8 90416-RG0-000 90416-RG0-000 / WASHER, THRUST (40X63X3.800)

1 $12.63 $8.94
8 90419-RG0-000 90419-RG0-000 / WASHER, THRUST (40X63X3.875)

1 $12.63 $8.94
8 90420-RG0-000 90420-RG0-000 / WASHER, THRUST (40X63X3.900)

1 $12.63 $8.94
8 90421-RG0-000 90421-RG0-000 / WASHER, THRUST (40X63X3.925)

1 $12.63 $8.94
8 90414-RG0-000 90414-RG0-000 / WASHER, THRUST (40X63X3.750)

1 $12.63 $8.94
8 90422-RG0-000 90422-RG0-000 / WASHER, THRUST (40X63X3.950)

1 $12.63 $8.94
8 90415-RG0-000 90415-RG0-000 / WASHER, THRUST (40X63X3.775)

1 $12.63 $8.94
8 90424-RG0-000 90424-RG0-000 / WASHER, THRUST (40X63X4.000)

1 $12.63 $8.94
8 90423-RG0-000 90423-RG0-000 / WASHER, THRUST (40X63X3.975)

1 $12.63 $8.94
8 90417-RG0-000 90417-RG0-000 / WASHER, THRUST (40X63X3.825)

1 $12.63 $8.94
8 90418-RG0-000 90418-RG0-000 / WASHER, THRUST (40X63X3.850)

1 $12.63 $8.94
9 90501-RPC-000 90501-RPC-000 / COLLAR (27X32X60.5)

1 $19.98 $14.15
10 90603-P0X-000 90603-P0X-000 / SET-RING (23MM)

1 $2.08 $1.48
11 91014-RPC-003 91014-RPC-003 / BEARING, NEEDLE (32X37X24)

2 $11.28 $7.99
12 91016-RPC-003 91016-RPC-003 / BEARING, NEEDLE (47X52X15.5)

1 $10.85 $7.68
13 91017-PZK-003 91017-PZK-003 / BEARING, NEEDLE (23X29X18)

1 $13.38 $9.48
14 91022-RPC-003 91022-RPC-003 / NEEDLE, THRUST (32X44X2)

1 $8.10 $5.73
14 91022-RPC-013 91022-RPC-013 / NEEDLE, THRUST (32X44X2)

1 $8.10 $5.73
15 91023-RPC-003 91023-RPC-003 / NEEDLE, THRUST (32X51.5X2.5)

1 $9.08 $6.43
16 91024-RPC-003 91024-RPC-003 / NEEDLE, THRUST (52.5X66.5X2)

2 $9.08 $6.43
17 91316-PR9-003 91316-PR9-003 / O-RING (33X1.9) (ARAI)

3 $2.37 $1.68
18 23481-RG5-305 23481-RG5-305 / GEAR SET, MAINSHAFT FIFTH

1 $143.07 $101.29
19 91010-R4R-305 91010-R4R-305 / BEARING SET, NEEDLE

1 $31.95 $22.62
