TRANSMISSION - AUTOMATIC/AT SERVO BODY for 2009 Honda FIT

Select AT SERVO BODY Part

2009 Honda FIT

Change vehicle

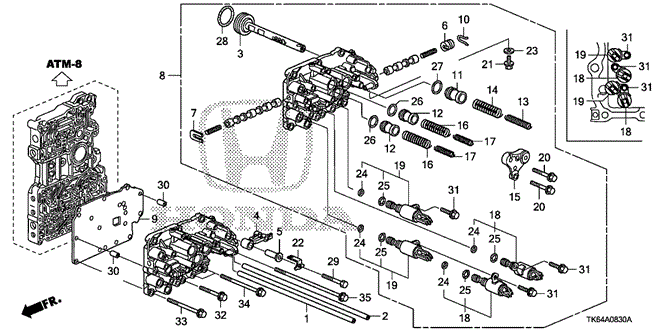

TRANSMISSION - AUTOMATIC/AT SERVO BODY for 2009 Honda FIT #1
No. Part # Part # / Description List Price Price
1 22743-PG4-000 22743-PG4-000 / PIPE, THIRD CLUTCH

$16.40 $11.61
2 22743-P4R-000 22743-P4R-000 / PIPE (8X192.5)

$8.60 $6.09
3 24271-PRP-000 24271-PRP-000 / SHAFT, SHIFT FORK

$51.63 $36.56
4 24630-PRP-000 24630-PRP-000 / ARM, CHANGE DETENT

$39.78 $28.17
5 24635-PRP-000 24635-PRP-000 / COLLAR, CHANGE DETENT ARM

$8.68 $6.15
6 27142-P6H-000 27142-P6H-000 / CAP (15MM)

$5.83 $4.13
7 27263-PX3-000 27263-PX3-000 / SEAT, VALVE SPRING

$2.83 $2.01
8 27400-RPC-000 27400-RPC-000 / BODY ASSY., SERVO

$329.55 $233.32
9 27412-RPC-000 27412-RPC-000 / PLATE, SERVO SEPARATING

$13.23 $9.37
10 27524-P6H-000 27524-P6H-000 / CLIP, CAP

$2.68 $1.90
11 27572-PRP-000 27572-PRP-000 / PISTON, SECOND ACCUMULATOR

$10.07 $7.13
12 27574-PRP-000 27574-PRP-000 / PISTON, THIRD ACCUMULATOR

$10.07 $7.13
13 27575-RPC-000 27575-RPC-000 / SPRING B, TOP ACCUMULATOR

$2.87 $2.03
14 27577-RPC-000 27577-RPC-000 / SPRING A, TOP ACCUMULATOR

$4.33 $3.07
15 27580-RPC-000 27580-RPC-000 / COVER, SERVO ACCUMULATOR

$12.08 $8.56
16 27581-RPC-000 27581-RPC-000 / SPRING A, SECOND ACCUMULATOR

$3.45 $2.44
17 27584-RPC-000 27584-RPC-000 / SPRING B, SECOND ACCUMULATOR

$3.45 $2.44
18 28400-RPC-003 28400-RPC-003 / SOLENOID ASSY. A

$88.42 $62.60
19 28500-RPC-003 28500-RPC-003 / SOLENOID ASSY. B

$88.42 $62.60
20 90001-PRP-000 90001-PRP-000 / BOLT, FLANGE (6X30)

$2.72 $1.92
21 90024-612-000 90024-612-000 / BOLT, SEALING (8MM)

$3.25 $2.30
22 90433-PRP-000 90433-PRP-000 / WASHER, LOCK (6MM)

$2.28 $1.62
23 90471-580-000 90471-580-000 / GASKET (8MM)

$1.73 $1.23
24 91301-P6H-003 91301-P6H-003 / O-RING (7.6X1.9) (KEIHIN)

$2.13 $1.51
25 91302-P7W-A00 91302-P7W-A00 / O-RING (9.6X1.9)

$1.75 $1.24
26 91321-PF4-004 91321-PF4-004 / O-RING (18.3X2.4) (NOK)

$2.17 $1.53
27 91331-PL5-J00 91331-PL5-J00 / O-RING (20.2X2.4) (NOK)

$2.47 $1.75
28 91344-580-000 91344-580-000 / O-RING (31X2.7) (ARAI)

$2.80 $1.98
29 93301-06040-0H 93301-06040-0H / BOLT, HEX. (6X40)

$0.93 $0.66
30 94301-08140 94301-08140 / PIN, DOWEL (8X14)

$1.22 $0.86
31 95701-06016-08 95701-06016-08 / BOLT, FLANGE (6X16)

$0.92 $0.65
32 95701-06035-08 95701-06035-08 / BOLT, FLANGE (6X35)

$1.07 $0.76
33 95701-06055-08 95701-06055-08 / BOLT, FLANGE (6X55)

$1.25 $0.89
34 95701-06070-08 95701-06070-08 / BOLT, FLANGE (6X70)

$1.35 $0.96
35 95701-06105-08 95701-06105-08 / BOLT, FLANGE (6X105)

$2.15 $1.52
