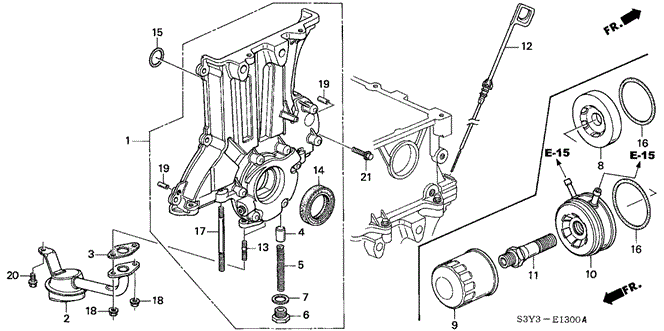

COOLER, ENGINE OIL in ENGINE/OIL PUMP - OIL STRAINER for 2002 Honda INSIGHT

COOLER, ENGINE OIL in ENGINE/OIL PUMP - OIL STRAINER for 2002 Honda INSIGHT #1
17
  • BOLT, STUD (8X80) - $1.52
8
  • BASE, OIL FILTER - $19.47
14
  • OIL SEAL (40X55X7) (NOK) - $6.36
19
  • PIN, DOWEL (6X10) - $0.85
9
  • FILTER, OIL (FILTECH TOYO ROKI)
16
  • O-RING (62.4X3.1) - $2.53
  • O-RING (62.4X3.1) - $2.53
12
  • DIPSTICK, OIL - $13.20
4
  • VALVE, RELIEF - $8.81
1
  • PUMP ASSY., OIL - $177.92
18
  • NUT, FLANGE (6MM) - $0.17
19
  • PIN, DOWEL (6X10) - $0.85
21
  • BOLT, FLANGE (6X20) - $0.15
2
  • STRAINER, OIL - $29.49
15
  • O-RING (26.2X2.4) (YAMADA SOMBOON) - $0.85
  • O-RING (26.2X2.4) (NOK) - $0.85
18
  • NUT, FLANGE (6MM) - $0.17
20
  • BOLT, FLANGE (6X12) - $0.71
3
  • GASKET, OIL STRAINER - $1.91
13
  • BOLT, STUD (6X28) - $2.62
5
  • SPRING, RELIEF VALVE - $2.53
16
  • O-RING (62.4X3.1) - $2.53
  • O-RING (62.4X3.1) - $2.53
10
  • COOLER, ENGINE OIL - $205.67
6
  • BOLT, SEALING (18MM) - $3.41
7
  • WASHER, SEALING (18MM) - $2.82
11
  • BOLT, CENTER OIL COOLER - $13.87
No. Part # Part # / Description Qty Req. List Price Price
1 15100-PHM-013 15100-PHM-013 / PUMP ASSY., OIL

1 $251.30 $177.92
2 15220-PHM-000 15220-PHM-000 / STRAINER, OIL

1 $41.65 $29.49
3 15221-PZ1-000 15221-PZ1-000 / GASKET, OIL STRAINER

1 $2.70 $1.91
4 15231-413-020 15231-413-020 / VALVE, RELIEF

1 $12.45 $8.81
5 15232-PHM-003 15232-PHM-003 / SPRING, RELIEF VALVE

1 $3.57 $2.53
6 15233-PFB-003 15233-PFB-003 / BOLT, SEALING (18MM)

1 $4.82 $3.41
7 15234-PC6-000 15234-PC6-000 / WASHER, SEALING (18MM)

1 $3.98 $2.82
8 15301-PHM-000 15301-PHM-000 / BASE, OIL FILTER

1 $27.50 $19.47
9 15400-PLM-A01 15400-PLM-A01 / FILTER, OIL (FILTECH TOYO ROKI)

1 - -
10 15500-PHM-A01 15500-PHM-A01 / COOLER, ENGINE OIL

1 $290.50 $205.67
11 15560-PHM-A00 15560-PHM-A00 / BOLT, CENTER OIL COOLER

1 $19.58 $13.87
12 15650-PHM-015 15650-PHM-015 / DIPSTICK, OIL

1 $18.65 $13.20
13 90042-PR3-000 90042-PR3-000 / BOLT, STUD (6X28)

2 $3.70 $2.62
14 91212-PWA-003 91212-PWA-003 / OIL SEAL (40X55X7) (NOK)

1 $8.98 $6.36
15 91308-P3R-T01 91308-P3R-T01 / O-RING (26.2X2.4) (YAMADA SOMBOON)

1 $1.20 $0.85
15 91308-P3R-T01 91308-P3R-T01 / O-RING (26.2X2.4) (NOK)

1 $1.20 $0.85
16 91316-PE7-730 91316-PE7-730 / O-RING (62.4X3.1)

2 $3.57 $2.53
16 91316-PE7-730 91316-PE7-730 / O-RING (62.4X3.1)

2 $3.57 $2.53
17 92900-08080-1B 92900-08080-1B / BOLT, STUD (8X80)

1 $2.15 $1.52
18 94050-06080 94050-06080 / NUT, FLANGE (6MM)

2 $0.23 $0.17
19 94301-06100 94301-06100 / PIN, DOWEL (6X10)

2 $1.20 $0.85
20 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

1 $1.00 $0.71
21 95701-06020-08 95701-06020-08 / BOLT, FLANGE (6X20)

6 $0.22 $0.15
