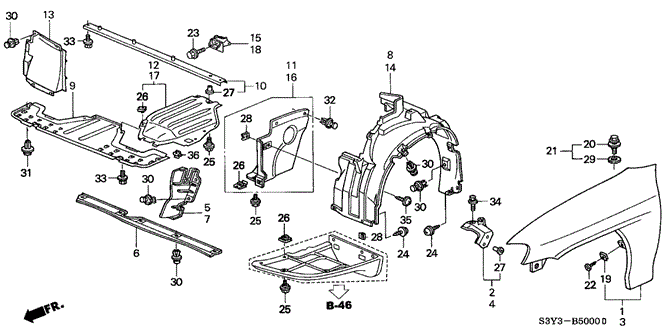

PANEL, L. FR. FENDER (DOT) in BODY / AIR CONDITIONING/FRONT FENDERS for 2002 Honda INSIGHT

PANEL, L. FR. FENDER (DOT) in BODY / AIR CONDITIONING/FRONT FENDERS for 2002 Honda INSIGHT #1
27
  • NUT, POP (6MM) - $2.77
22
  • SCREW, TAPPING (4X10) - $1.09
32
  • CLIP, BUMPER FACE
9
  • COVER, FR. (LOWER) - $85.67
30
  • CLIP, FENDER (INNER) - $1.10
26
  • NUT, AIR SPOILER CLIP - $1.83
6
  • PLATE, FR. BULKHEAD (LOWER) - $11.35
25
  • BOLT, FLANGE (6X20) - $1.22
24
  • SCREW, TAPPING (5X16) - $1.17
3
  • PANEL, L. FR. FENDER (DOT) - $173.20
30
  • CLIP, FENDER (INNER) - $1.10
14
  • FENDER, L. FR. (INNER) - $46.67
28
  • NUT, SPRING (5MM) - $1.30
19
  • NUT, FR. COMBINATION LIGHT - $2.43
16
  • COVER, L. FR. SIDE - $21.42
25
  • BOLT, FLANGE (6X20) - $1.22
25
  • BOLT, FLANGE (6X20) - $1.22
11
  • COVER, R. FR. SIDE - $21.42
10
  • BEAM, COVER (LOWER) - $15.87
15
  • COVER, R. FR. ARM (LOWER) - $23.18
26
  • NUT, AIR SPOILER CLIP - $1.83
8
  • FENDER, R. FR. (INNER) - $46.67
18
  • COVER, L. FR. ARM (LOWER) - $37.43
4
  • STAY, L. FR. FENDER - $28.03
17
  • COVER, L. ENGINE (LOWER) - $47.09
26
  • NUT, AIR SPOILER CLIP - $1.83
34
  • BOLT-WASHER (6X20) - $0.63
20
  • BOLT, FR. FENDER - $1.77
7
  • PLATE, L. FR. BULKHEAD SIDE - $10.61
36
  • CLIP, FR. COVER (LOWER) - $2.83
35
  • SCREW, TAPPING (5X16) - $0.68
2
  • STAY, R. FR. FENDER - $28.03
33
  • BOLT-WASHER (6X16) - $0.63
27
  • NUT, POP (6MM) - $2.77
12
  • COVER, R. ENGINE (LOWER) - $47.09
30
  • CLIP, FENDER (INNER) - $1.10
33
  • BOLT-WASHER (6X16) - $0.63
30
  • CLIP, FENDER (INNER) - $1.10
23
  • BOLT-WASHER (8X25) (W/GUIDE) - $1.22
1
  • PANEL, R. FR. FENDER (DOT) - $173.20
5
  • PLATE, R. FR. BULKHEAD SIDE - $10.61
28
  • NUT, SPRING (5MM) - $1.30
30
  • CLIP, FENDER (INNER) - $1.10
24
  • SCREW, TAPPING (5X16) - $1.17
29
  • WASHER, FENDER - $1.35
21
  • BOLT ASSY., FR. FENDER - $2.60
31
  • CLIP A, BUMPER - $2.54
No. Part # Part # / Description Qty Req. List Price Price
1 60211-S3Y-A90ZZ 60211-S3Y-A90ZZ / PANEL, R. FR. FENDER (DOT)

1 $244.63 $173.20
2 60212-S3Y-000ZZ 60212-S3Y-000ZZ / STAY, R. FR. FENDER

1 $39.58 $28.03
3 60261-S3Y-A90ZZ 60261-S3Y-A90ZZ / PANEL, L. FR. FENDER (DOT)

1 $244.63 $173.20
4 60262-S3Y-000ZZ 60262-S3Y-000ZZ / STAY, L. FR. FENDER

1 $39.58 $28.03
5 71161-S3Y-000 71161-S3Y-000 / PLATE, R. FR. BULKHEAD SIDE

1 $14.98 $10.61
6 71162-S3Y-000 71162-S3Y-000 / PLATE, FR. BULKHEAD (LOWER)

1 $16.03 $11.35
7 71165-S3Y-000 71165-S3Y-000 / PLATE, L. FR. BULKHEAD SIDE

1 $14.98 $10.61
8 74101-S3Y-000 74101-S3Y-000 / FENDER, R. FR. (INNER)

1 $65.92 $46.67
9 74115-S3Y-000 74115-S3Y-000 / COVER, FR. (LOWER)

1 $121.00 $85.67
10 74117-S3Y-000 74117-S3Y-000 / BEAM, COVER (LOWER)

1 $22.42 $15.87
11 74118-S3Y-000 74118-S3Y-000 / COVER, R. FR. SIDE

1 $30.25 $21.42
12 74119-S3Y-000 74119-S3Y-000 / COVER, R. ENGINE (LOWER)

1 $66.52 $47.09
14 74151-S3Y-000 74151-S3Y-000 / FENDER, L. FR. (INNER)

1 $65.92 $46.67
15 74160-S3Y-000 74160-S3Y-000 / COVER, R. FR. ARM (LOWER)

1 $32.73 $23.18
16 74168-S3Y-000 74168-S3Y-000 / COVER, L. FR. SIDE

1 $30.25 $21.42
17 74169-S3Y-000 74169-S3Y-000 / COVER, L. ENGINE (LOWER)

1 $66.52 $47.09
18 74170-S3Y-000 74170-S3Y-000 / COVER, L. FR. ARM (LOWER)

1 $52.87 $37.43
19 90105-SV4-000 90105-SV4-000 / NUT, FR. COMBINATION LIGHT

6 $3.43 $2.43
20 90113-S3Y-000 90113-S3Y-000 / BOLT, FR. FENDER

12 $2.50 $1.77
21 90114-S3Y-000 90114-S3Y-000 / BOLT ASSY., FR. FENDER

12 $3.67 $2.60
22 90121-SM4-003 90121-SM4-003 / SCREW, TAPPING (4X10)

6 $1.53 $1.09
23 90122-S3Y-000 90122-S3Y-000 / BOLT-WASHER (8X25) (W/GUIDE)

6 $1.72 $1.22
24 90125-S3Y-000 90125-S3Y-000 / SCREW, TAPPING (5X16)

6 $1.65 $1.17
25 90133-S3Y-000 90133-S3Y-000 / BOLT, FLANGE (6X20)

8 $1.72 $1.22
26 90305-SM4-000 90305-SM4-000 / NUT, AIR SPOILER CLIP

8 $2.58 $1.83
27 90306-SL0-013 90306-SL0-013 / NUT, POP (6MM)

12 $3.92 $2.77
28 90331-S3Y-003 90331-S3Y-003 / NUT, SPRING (5MM)

4 $1.83 $1.30
29 90503-S3Y-000 90503-S3Y-000 / WASHER, FENDER

12 $1.90 $1.35
30 91501-S04-003 91501-S04-003 / CLIP, FENDER (INNER)

23 $1.55 $1.10
31 91503-SZ3-003 91503-SZ3-003 / CLIP A, BUMPER

2 $3.58 $2.54
32 91503-SZ5-003 91503-SZ5-003 / CLIP, BUMPER FACE

4 - -
33 93404-06016-05 93404-06016-05 / BOLT-WASHER (6X16)

4 $0.88 $0.63
34 93404-06020-04 93404-06020-04 / BOLT-WASHER (6X20)

4 $0.88 $0.63
35 93903-253G0 93903-253G0 / SCREW, TAPPING (5X16)

2 $0.97 $0.68
36 91513-S3Y-000 91513-S3Y-000 / CLIP, FR. COVER (LOWER)

2 $4.00 $2.83
