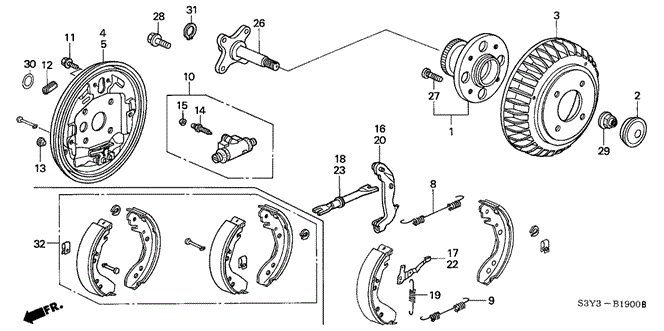

BEARING ASSY., RR. HUB UNIT in CHASSIS/REAR BRAKE (DRUM) for 2002 Honda INSIGHT

BEARING ASSY., RR. HUB UNIT in CHASSIS/REAR BRAKE (DRUM) for 2002 Honda INSIGHT #1
28
  • BOLT, RR. SPINDLE (12X24.5) - $1.77
14
  • SCREW, BLEEDER - $2.96
5
  • PLATE, L. RR. BRAKE BACK - $36.20
15
  • CAP, BLEEDER SCREW - $2.12
16
  • LEVER, R. PARKING BRAKE - $10.82
32
  • SHOE SET, RR. BRAKE - $43.13
9
  • SPRING B, BRAKE - $3.78
22
  • LEVER, L. ADJUSTER - $6.89
17
  • LEVER, R. ADJUSTER - $6.89
1
  • BEARING ASSY., RR. HUB UNIT - $166.70
26
  • SPINDLE, RR. WHEEL - $66.78
4
  • PLATE, R. RR. BRAKE BACK - $36.20
27
  • BOLT, WHEEL (SAGA) - $3.98
  • BOLT, WHEEL (ROCKNEL FASTENER) - $1.30
  • BOLT, WHEEL (NAGOYA RASHI) - $1.30
8
  • SPRING A, BRAKE - $4.39
20
  • LEVER, L. PARKING BRAKE - $10.34
31
  • CIRCLIP (OUTER) (25MM) - $1.17
23
  • ADJUSTER ASSY., L. - $10.47
11
  • BOLT, FLANGE (6MM) - $1.83
10
  • CYLINDER ASSY., RR. WHEEL - $37.88
18
  • ADJUSTER ASSY., R. - $10.47
2
  • CAP, HUB UNIT - $3.94
12
  • PLUG, ADJUSTER - $3.25
30
  • O-RING (22.1X1.9) - $2.28
19
  • SPRING, ADJUSTER - $2.78
3
  • DRUM, RR. BRAKE - $74.27
29
  • NUT, SPINDLE - $5.48
13
  • PLUG, INSPECTION - $2.87
No. Part # Part # / Description Qty Req. List Price Price
1 42200-S3Y-951 42200-S3Y-951 / BEARING ASSY., RR. HUB UNIT

2 $235.45 $166.70
2 42326-SFA-000 42326-SFA-000 / CAP, HUB UNIT

2 $5.57 $3.94
3 42610-S3Y-000 42610-S3Y-000 / DRUM, RR. BRAKE

2 $104.90 $74.27
4 43110-S3Y-952 43110-S3Y-952 / PLATE, R. RR. BRAKE BACK

1 $51.13 $36.20
5 43120-S3Y-952 43120-S3Y-952 / PLATE, L. RR. BRAKE BACK

1 $51.13 $36.20
8 43171-S3Y-003 43171-S3Y-003 / SPRING A, BRAKE

2 $6.20 $4.39
9 43172-S3Y-003 43172-S3Y-003 / SPRING B, BRAKE

2 $5.33 $3.78
10 43300-S3Y-003 43300-S3Y-003 / CYLINDER ASSY., RR. WHEEL

2 $53.50 $37.88
11 43305-ST5-004 43305-ST5-004 / BOLT, FLANGE (6MM)

4 $2.58 $1.83
12 43345-S3Y-003 43345-S3Y-003 / PLUG, ADJUSTER

2 $4.58 $3.25
13 43346-S3Y-003 43346-S3Y-003 / PLUG, INSPECTION

2 $4.05 $2.87
14 43352-ST5-004 43352-ST5-004 / SCREW, BLEEDER

2 $4.18 $2.96
15 43353-ST5-004 43353-ST5-004 / CAP, BLEEDER SCREW

2 $3.00 $2.12
16 43361-S3Y-003 43361-S3Y-003 / LEVER, R. PARKING BRAKE

1 $15.28 $10.82
17 43366-S3Y-003 43366-S3Y-003 / LEVER, R. ADJUSTER

1 $9.73 $6.89
18 43367-S3Y-023 43367-S3Y-023 / ADJUSTER ASSY., R.

1 $14.78 $10.47
19 43369-S3Y-003 43369-S3Y-003 / SPRING, ADJUSTER

2 $3.93 $2.78
20 43371-S3Y-003 43371-S3Y-003 / LEVER, L. PARKING BRAKE

1 $14.60 $10.34
22 43376-S3Y-003 43376-S3Y-003 / LEVER, L. ADJUSTER

1 $9.73 $6.89
23 43377-S3Y-023 43377-S3Y-023 / ADJUSTER ASSY., L.

1 $14.78 $10.47
26 52200-S3Y-A00 52200-S3Y-A00 / SPINDLE, RR. WHEEL

2 $94.32 $66.78
27 90113-SA0-006 90113-SA0-006 / BOLT, WHEEL (SAGA)

8 $5.62 $3.98
27 90113-SM1-005 90113-SM1-005 / BOLT, WHEEL (ROCKNEL FASTENER)

8 $1.83 $1.30
27 90113-SA0-025 90113-SA0-025 / BOLT, WHEEL (NAGOYA RASHI)

8 $1.83 $1.30
28 90163-S3Y-000 90163-S3Y-000 / BOLT, RR. SPINDLE (12X24.5)

8 $2.50 $1.77
29 90305-S50-003 90305-S50-003 / NUT, SPINDLE

2 $7.73 $5.48
30 90551-S3Y-003 90551-S3Y-003 / O-RING (22.1X1.9)

2 $3.22 $2.28
31 90681-S3Y-000 90681-S3Y-000 / CIRCLIP (OUTER) (25MM)

2 $1.65 $1.17
32 43053-S3Y-950 43053-S3Y-950 / SHOE SET, RR. BRAKE

1 $60.92 $43.13
