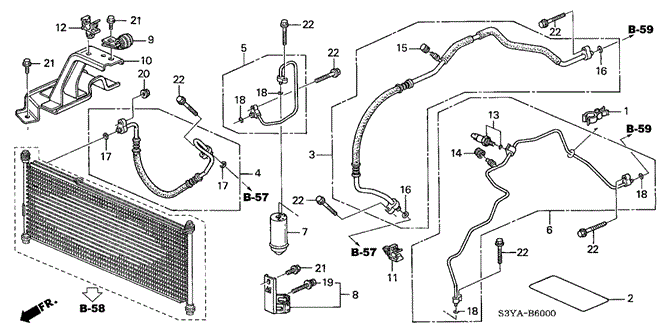

HOSE, SUCTION in BODY / AIR CONDITIONING/A/C HOSES - PIPES for 2005 Honda INSIGHT

HOSE, SUCTION in BODY / AIR CONDITIONING/A/C HOSES - PIPES for 2005 Honda INSIGHT #1
21
  • BOLT, FLANGE (6X12) - $0.63
21
  • BOLT, FLANGE (6X12) - $0.63
8
  • BRACKET, LIQUID TANK - $17.43
17
  • O-RING (1/2") - $2.35
18
  • O-RING (8MM) - $2.55
4
  • HOSE, DISCHARGE - $119.18
16
  • O-RING (5/8") - $2.35
  • O-RING (5/8") - $2.35
6
  • PIPE, RECEIVER - $41.58
3
  • HOSE, SUCTION - $160.81
21
  • BOLT, FLANGE (6X12) - $0.63
15
  • CAP, VALVE (L) (NICHIRIN) - $2.94
18
  • O-RING (8MM) - $2.55
22
  • BOLT, FLANGE (6X25) - $0.70
20
  • NUT, FLANGE (6MM) - $0.17
2
  • LABEL, AIR CONDITIONER CAUTION - $1.30
9
  • CLAMP, SUCTION HOSE - $6.23
12
  • CLIP, RECEIVER PIPE - $2.05
1
  • CLAMP, PURGE HOSE - $3.32
22
  • BOLT, FLANGE (6X25) - $0.70
14
  • CAP, VALVE (H) - $7.14
18
  • O-RING (8MM) - $2.55
13
  • SWITCH, TRIPLE PRESSURE (KEIHIN) - $32.03
22
  • BOLT, FLANGE (6X25) - $0.70
7
  • RECEIVER - $86.87
11
  • CLAMP, RECEIVER PIPE - $0.65
22
  • BOLT, FLANGE (6X25) - $0.70
19
  • BOLT-WASHER (6X25) - $0.85
22
  • BOLT, FLANGE (6X25) - $0.70
18
  • O-RING (8MM) - $2.55
5
  • PIPE, CONDENSER - $45.82
16
  • O-RING (5/8") - $2.35
  • O-RING (5/8") - $2.35
22
  • BOLT, FLANGE (6X25) - $0.70
22
  • BOLT, FLANGE (6X25) - $0.70
17
  • O-RING (1/2") - $2.35
No. Part # Part # / Description Qty Req. List Price Price
1 17727-SM4-003 17727-SM4-003 / CLAMP, PURGE HOSE

1 $4.68 $3.32
2 80050-SR3-H00 80050-SR3-H00 / LABEL, AIR CONDITIONER CAUTION

1 $1.83 $1.30
3 80311-S3Y-A02 80311-S3Y-A02 / HOSE, SUCTION

1 $227.13 $160.81
4 80315-S3Y-A01 80315-S3Y-A01 / HOSE, DISCHARGE

1 $168.33 $119.18
5 80331-S3Y-A02 80331-S3Y-A02 / PIPE, CONDENSER

1 $64.72 $45.82
6 80341-S3Y-A04 80341-S3Y-A04 / PIPE, RECEIVER

1 $58.72 $41.58
7 80351-S3Y-A01 80351-S3Y-A01 / RECEIVER

1 $122.70 $86.87
8 80352-S3Y-A01 80352-S3Y-A01 / BRACKET, LIQUID TANK

1 $24.62 $17.43
9 80361-S3Y-A00 80361-S3Y-A00 / CLAMP, SUCTION HOSE

1 $8.80 $6.23
11 80381-SV7-A01 80381-SV7-A01 / CLAMP, RECEIVER PIPE

1 $0.92 $0.65
12 80387-SM4-A01 80387-SM4-A01 / CLIP, RECEIVER PIPE

1 $2.90 $2.05
13 80440-S3Y-003 80440-S3Y-003 / SWITCH, TRIPLE PRESSURE (KEIHIN)

1 $45.23 $32.03
14 80865-SL0-003 80865-SL0-003 / CAP, VALVE (H)

1 $10.08 $7.14
15 80866-ST0-003 80866-ST0-003 / CAP, VALVE (L) (NICHIRIN)

1 $4.15 $2.94
16 80871-SN7-003 80871-SN7-003 / O-RING (5/8")

2 $3.32 $2.35
16 80871-SN7-003 80871-SN7-003 / O-RING (5/8")

2 $3.32 $2.35
17 80872-ST7-000 80872-ST7-000 / O-RING (1/2")

2 $3.32 $2.35
18 80873-ST7-000 80873-ST7-000 / O-RING (8MM)

4 $3.60 $2.55
19 93403-06025-08 93403-06025-08 / BOLT-WASHER (6X25)

1 $1.20 $0.85
20 94050-06080 94050-06080 / NUT, FLANGE (6MM)

1 $0.23 $0.17
21 95701-06012-05 95701-06012-05 / BOLT, FLANGE (6X12)

2 $0.88 $0.63
22 95701-06025-08 95701-06025-08 / BOLT, FLANGE (6X25)

7 $0.98 $0.70
