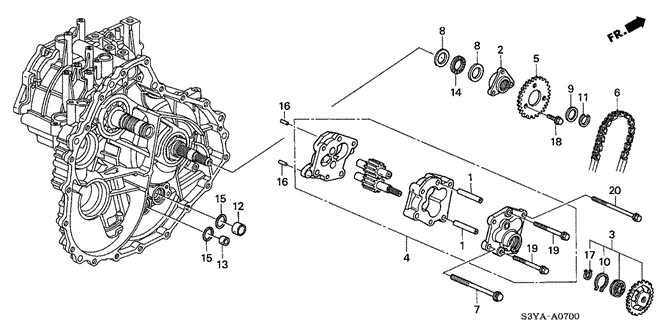

PUMP ASSY., OIL in TRANSMISSION - AUTOMATIC/AT OIL PUMP for 2005 Honda INSIGHT

PUMP ASSY., OIL in TRANSMISSION - AUTOMATIC/AT OIL PUMP for 2005 Honda INSIGHT #1
8
  • WASHER, THRUST (22X35X1.5) - $2.55
8
  • WASHER, THRUST (22X35X1.5) - $2.55
20
  • BOLT, FLANGE (6X60) - $0.85
3
  • SPROCKET, OIL PUMP DRIVEN - $20.90
7
  • BOLT (8X60) - $3.76
10
  • CIRCLIP (OUTER) (24MM) - $1.78
12
  • PIN, DOWEL (22X10) - $2.45
16
  • PIN, DOWEL (6X10) - $0.85
9
  • SHIM G (22X28) (2.15) - $4.72
  • SHIM E (22X28) (1.65) - $4.72
  • SHIM D (22X28) (1.40) - $4.72
  • SHIM F (22X28) (1.90) - $4.72
  • SHIM C (22X28) (1.15) - $4.70
  • SHIM H (22X28) (2.40) - $4.72
2
  • HUB, DRIVEN SPROCKET - $20.32
15
  • O-RING (20.7X2.4) - $1.90
6
  • CHAIN, OIL PUMP DRIVE - $16.02
19
  • BOLT, FLANGE (6X45) - $0.85
16
  • PIN, DOWEL (6X10) - $0.85
17
  • CIRCLIP (OUTER) (12MM) - $0.78
13
  • PIN, DOWEL (18X10) - $2.45
4
  • PUMP ASSY., OIL - $160.87
14
  • BEARING, THRUST NEEDLE (22X36X2) - $5.10
1
  • PIPE (35MM) - $2.04
19
  • BOLT, FLANGE (6X45) - $0.85
18
  • BOLT, FLANGE (6X12) - $0.71
15
  • O-RING (20.7X2.4) - $1.90
5
  • SPROCKET, OIL PUMP DRIVEN - $9.46
11
  • CIRCLIP (OUTER) (22MM) - $1.78
1
  • PIPE (35MM) - $2.04
No. Part # Part # / Description Qty Req. List Price Price
1 22749-PW4-000 22749-PW4-000 / PIPE (35MM)

2 $2.88 $2.04
2 23954-PHT-000 23954-PHT-000 / HUB, DRIVEN SPROCKET

1 $28.70 $20.32
3 25010-P4V-305 25010-P4V-305 / SPROCKET, OIL PUMP DRIVEN

1 $29.52 $20.90
4 25100-PHT-315 25100-PHT-315 / PUMP ASSY., OIL

1 $227.22 $160.87
5 25161-P4V-000 25161-P4V-000 / SPROCKET, OIL PUMP DRIVEN

1 $13.37 $9.46
6 25165-PLY-003 25165-PLY-003 / CHAIN, OIL PUMP DRIVE

1 $22.63 $16.02
7 90002-P4V-000 90002-P4V-000 / BOLT (8X60)

1 $5.32 $3.76
8 90402-PLY-000 90402-PLY-000 / WASHER, THRUST (22X35X1.5)

2 $3.60 $2.55
9 90577-P4V-000 90577-P4V-000 / SHIM G (22X28) (2.15)

1 $6.67 $4.72
9 90575-P4V-000 90575-P4V-000 / SHIM E (22X28) (1.65)

1 $6.67 $4.72
9 90574-P4V-000 90574-P4V-000 / SHIM D (22X28) (1.40)

1 $6.67 $4.72
9 90576-P4V-000 90576-P4V-000 / SHIM F (22X28) (1.90)

1 $6.67 $4.72
9 90573-P4V-000 90573-P4V-000 / SHIM C (22X28) (1.15)

1 $6.63 $4.70
9 90578-P4V-000 90578-P4V-000 / SHIM H (22X28) (2.40)

1 $6.67 $4.72
10 90607-P4V-000 90607-P4V-000 / CIRCLIP (OUTER) (24MM)

1 $2.52 $1.78
11 90609-P4V-000 90609-P4V-000 / CIRCLIP (OUTER) (22MM)

1 $2.52 $1.78
12 90703-P4V-000 90703-P4V-000 / PIN, DOWEL (22X10)

1 $3.47 $2.45
13 90704-P4V-000 90704-P4V-000 / PIN, DOWEL (18X10)

1 $3.47 $2.45
14 91131-PLY-005 91131-PLY-005 / BEARING, THRUST NEEDLE (22X36X2)

1 $7.20 $5.10
15 91327-P4V-003 91327-P4V-003 / O-RING (20.7X2.4)

2 $2.68 $1.90
16 94303-06100 94303-06100 / PIN, DOWEL (6X10)

2 $1.20 $0.85
17 94510-12000 94510-12000 / CIRCLIP (OUTER) (12MM)

1 $1.10 $0.78
18 95701-06012-08 95701-06012-08 / BOLT, FLANGE (6X12)

3 $1.00 $0.71
19 95701-06045-08 95701-06045-08 / BOLT, FLANGE (6X45)

3 $1.20 $0.85
20 95701-06060-08 95701-06060-08 / BOLT, FLANGE (6X60)

2 $1.20 $0.85
