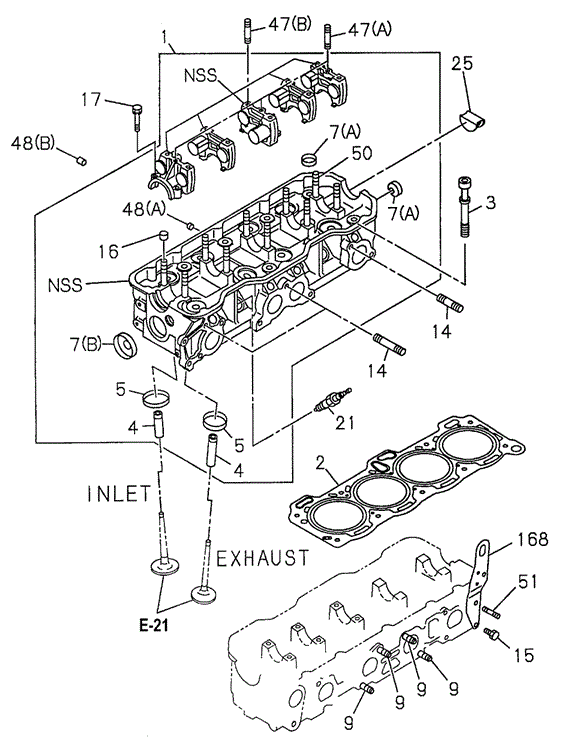

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (DX) for 1994 Honda PASSPORT

CYLINDER HEAD ASSY. in ENGINE/CYLINDER HEAD (DX) for 1994 Honda PASSPORT #1
5
  • INSERT, VALVE SEAT EX. - $10.31
  • INSERT, VALVE SEAT IN. - $9.44
16
  • DOWEL, ROCKER SHAFT BRACKET - $0.96
9
  • STUD (8X75) (L=87) - $1.44
  • STUD (8X120) - $2.05
  • STUD (8X96) - $0.98
9
  • STUD (8X75) (L=87) - $1.44
  • STUD (8X120) - $2.05
  • STUD (8X96) - $0.98
14
  • STUD, EX. MANIFOLD (M8X42) (L=58) - $3.22
  • STUD (8X30) (L=46) - $0.84
2
  • GASKET, CYLINDER HEAD - $56.82
9
  • STUD (8X75) (L=87) - $1.44
  • STUD (8X120) - $2.05
  • STUD (8X96) - $0.98
4
  • GUIDE, VALVE EX.
  • GUIDE, VALVE IN. - $5.66
5
  • INSERT, VALVE SEAT EX. - $10.31
  • INSERT, VALVE SEAT IN. - $9.44
4
  • GUIDE, VALVE EX.
  • GUIDE, VALVE IN. - $5.66
17
  • BOLT (6X25) - $0.85
  • BOLT (6X25) - $0.85
168
  • HANGER, FR. ENGINE - $12.70
15
  • BOLT (8X16) - $0.61
14
  • STUD, EX. MANIFOLD (M8X42) (L=58) - $3.22
  • STUD (8X30) (L=46) - $0.84
51
  • STUD EXH MANIF - $1.36
25
  • PLUG, CYLINDER HEAD - $5.33
1
  • CYLINDER HEAD ASSY.
21
  • SPARK PLUG (NGK) - $2.50
9
  • STUD (8X75) (L=87) - $1.44
  • STUD (8X120) - $2.05
  • STUD (8X96) - $0.98
3
  • BOLT (12X102) - $5.05
50
  • STUD ROCKER - $1.59
  • STUD, FAN BRACKET (8X65) (L=81) - $1.59
No. Part # Part # / Description Qty Req. List Price Price
1 8-97111-154-0 8-97111-154-0 / CYLINDER HEAD ASSY.

1 - -
2 8-94174-279-0 8-94174-279-0 / GASKET, CYLINDER HEAD

1 $80.25 $56.82
3 8-94200-751-0 8-94200-751-0 / BOLT (12X102)

10 $7.13 $5.05
4 8-94206-763-0 8-94206-763-0 / GUIDE, VALVE EX.

4 - -
4 8-94206-762-0 8-94206-762-0 / GUIDE, VALVE IN.

4 $8.00 $5.66
5 8-97110-273-0 8-97110-273-0 / INSERT, VALVE SEAT EX.

4 $15.89 $10.31
5 8-97037-802-0 8-97037-802-0 / INSERT, VALVE SEAT IN.

4 $13.33 $9.44
N/A 8-94241-637-0 8-94241-637-0 / CUP, CYLINDER SEALING

1 $7.80 $5.52
N/A 1-09600-016-0 1-09600-016-0 / CUP, SEALING CYLINDER

2 $2.58 $1.83
9 9-04110-875-0 9-04110-875-0 / STUD (8X75) (L=87)

2 $2.03 $1.44
9 9-09630-014-0 9-09630-014-0 / STUD (8X120)

1 $2.90 $2.05
9 9-09830-163-0 9-09830-163-0 / STUD (8X96)

1 $1.38 $0.98
14 8-97118-447-0 8-97118-447-0 / STUD, EX. MANIFOLD (M8X42) (L=58)

3 $4.55 $3.22
14 9-04010-830-0 9-04010-830-0 / STUD (8X30) (L=46)

4 $1.18 $0.84
15 0-50540-816-0 0-50540-816-0 / BOLT (8X16)

2 $0.87 $0.61
16 8-94108-075-1 8-94108-075-1 / DOWEL, ROCKER SHAFT BRACKET

10 $1.35 $0.96
17 0-28080-625-0 0-28080-625-0 / BOLT (6X25)

2 $1.20 $0.85
17 0-28080-625-0 0-28080-625-0 / BOLT (6X25)

2 $1.20 $0.85
21 8-94120-560-0 8-94120-560-0 / SPARK PLUG (NGK)

4 $3.53 $2.50
25 8-94220-423-1 8-94220-423-1 / PLUG, CYLINDER HEAD

1 $7.53 $5.33
N/A 8-94232-311-0 8-94232-311-0 / STUD, ROCKER SHAFT BRACKET (8X33) (L=44)

1 $1.75 $1.24
N/A 8-94232-312-0 8-94232-312-0 / STUD, HANGER (8X18) (L=29)

2 $1.35 $0.96
N/A 8-94200-790-2 8-94200-790-2 / PLUG, CYLINDER HEAD (OD=6.3)

1 $9.25 $6.55
50 0-40210-865-0 0-40210-865-0 / STUD ROCKER

10 $2.25 $1.59
50 0-40210-865-0 0-40210-865-0 / STUD, FAN BRACKET (8X65) (L=81)

10 $2.25 $1.59
51 0-41010-860-0 0-41010-860-0 / STUD EXH MANIF

1 $1.92 $1.36
168 8-94472-343-0 8-94472-343-0 / HANGER, FR. ENGINE

1 $17.93 $12.70
