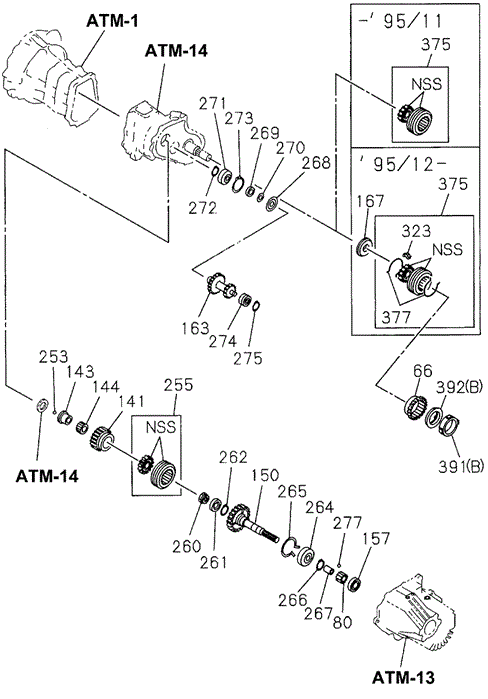

SHAFT, RR. WHEEL DRIVE OUTPUT in TRANSMISSION - AUTOMATIC/AT MAINSHAFT (4X4) for 1995 Honda PASSPORT

SHAFT, RR. WHEEL DRIVE OUTPUT in TRANSMISSION - AUTOMATIC/AT MAINSHAFT (4X4) for 1995 Honda PASSPORT #1
163
  • GEAR, TRANSFER COUNTER - $383.52
268
  • PLATE, ANTI-LASH COUNTER - $7.68
266
  • RING, SNAP - $2.16
  • RING, SNAP (OD=53.0) (ID=37.0) - $2.16
269
  • SPACER, ANTI LASH PLATE COUNTER - $3.75
  • SPACER, ANTI LASH PLATE - $3.75
260
  • NUT (27) - $5.66
270
  • SPRING, ANTI LASH TRANSFER - $1.90
262
  • RING, SNAP (ID=23.2) - $0.78
141
  • GEAR, TRANSFER INPUT (34T) - $219.65
271
  • BEARING (NIHON SEIKO) - $21.11
143
  • COLLAR, INPUT GEAR BEARING - $24.23
80
  • GEAR, SPEED DRIVE (TEETH=6) - $15.98
375
  • SYNCHRONIZER ASSY. (2ND/4TH)
  • SYNCHRONIZER ASSY. (2ND/4TH)
265
  • RING, SNAP (OD=95.0) - $7.29
267
  • COLLAR, RR. OUTPUT SHAFT TRANSFER
255
  • SYNCHRONIZER ASSY., LOW-HIGH TRANSFER - $211.23
274
  • BEARING, COUNTER GEAR (KOYO) - $66.84
  • BEARING, COUNTER GEAR (NSK) - $74.29
  • BEARING, RR. COUNTER GEAR - $74.29
150
  • SHAFT, RR. WHEEL DRIVE OUTPUT - $411.16
261
  • BEARING, PILOT OUTPUT SHAFT - $12.46
273
  • RING, SNAP (OD=92.0) - $6.10
157
  • BEARING (NIHON SEIKO) - $21.11
275
  • RING, SNAP (ID=23.2) - $0.78
375
  • SYNCHRONIZER ASSY. (2ND/4TH)
  • SYNCHRONIZER ASSY. (2ND/4TH)
264
  • BEARING, RR. OUTPUT SHAFT - $33.36
  • BEARING, RR. OUTPUT SHAFT - $55.71
272
  • RING, SNAP (T=1.50) (WHITE) - $1.90
253
  • BALL, THRUST WASHER - $0.57
277
  • BALL, THRUST WASHER - $0.57
144
  • BEARING, NEEDLE (LOW GEAR) - $29.97
  • BEARING NEEDLE - $29.97
  • BEARING, NEEDLE LOW - $29.97
No. Part # Part # / Description Qty Req. List Price Price
80 8-94333-535-2 8-94333-535-2 / GEAR, SPEED DRIVE (TEETH=6)

1 $22.57 $15.98
141 8-97120-121-0 8-97120-121-0 / GEAR, TRANSFER INPUT (34T)

1 $310.23 $219.65
143 8-94482-579-1 8-94482-579-1 / COLLAR, INPUT GEAR BEARING

1 $34.22 $24.23
144 8-94161-990-2 8-94161-990-2 / BEARING, NEEDLE (LOW GEAR)

1 $42.33 $29.97
144 8-94161-990-2 8-94161-990-2 / BEARING NEEDLE

1 $42.33 $29.97
144 8-94161-990-2 8-94161-990-2 / BEARING, NEEDLE LOW

1 $42.33 $29.97
150 8-97120-122-0 8-97120-122-0 / SHAFT, RR. WHEEL DRIVE OUTPUT

1 $580.73 $411.16
271 8-94422-050-1 8-94422-050-1 / BEARING (NIHON SEIKO)

1 $29.82 $21.11
163 8-97120-124-0 8-97120-124-0 / GEAR, TRANSFER COUNTER

1 $541.70 $383.52
277 8-94201-356-0 8-94201-356-0 / BALL, THRUST WASHER

1 $0.80 $0.57
255 8-97033-098-0 8-97033-098-0 / SYNCHRONIZER ASSY., LOW-HIGH TRANSFER

1 $298.35 $211.23
260 8-94388-182-1 8-94388-182-1 / NUT (27)

1 $8.00 $5.66
261 8-94422-176-0 8-94422-176-0 / BEARING, PILOT OUTPUT SHAFT

1 $17.60 $12.46
275 9-09180-025-0 9-09180-025-0 / RING, SNAP (ID=23.2)

1 $1.10 $0.78
264 8-94422-054-0 8-94422-054-0 / BEARING, RR. OUTPUT SHAFT

1 $47.12 $33.36
264 8-94422-055-1 8-94422-055-1 / BEARING, RR. OUTPUT SHAFT

1 $78.68 $55.71
265 8-94422-091-0 8-94422-091-0 / RING, SNAP (OD=95.0)

1 $10.30 $7.29
266 8-97254-316-0 8-97254-316-0 / RING, SNAP

1 $3.05 $2.16
266 8-97254-316-0 8-97254-316-0 / RING, SNAP (OD=53.0) (ID=37.0)

1 $3.05 $2.16
267 8-94368-835-1 8-94368-835-1 / COLLAR, RR. OUTPUT SHAFT TRANSFER

1 - -
268 8-94320-567-0 8-94320-567-0 / PLATE, ANTI-LASH COUNTER

1 $10.85 $7.68
269 8-97222-764-0 8-97222-764-0 / SPACER, ANTI LASH PLATE COUNTER

1 $5.30 $3.75
269 8-97222-764-0 8-97222-764-0 / SPACER, ANTI LASH PLATE

1 $5.30 $3.75
270 8-94482-498-0 8-94482-498-0 / SPRING, ANTI LASH TRANSFER

1 $2.68 $1.90
272 8-94448-808-0 8-94448-808-0 / RING, SNAP (T=1.50) (WHITE)

1 $2.68 $1.90
273 8-94422-092-0 8-94422-092-0 / RING, SNAP (OD=92.0)

1 $8.62 $6.10
274 8-97080-185-0 8-97080-185-0 / BEARING, COUNTER GEAR (KOYO)

1 $94.40 $66.84
274 8-97080-184-0 8-97080-184-0 / BEARING, COUNTER GEAR (NSK)

1 $104.93 $74.29
274 8-97080-184-0 8-97080-184-0 / BEARING, RR. COUNTER GEAR

1 $104.93 $74.29
375 8-97104-026-0 8-97104-026-0 / SYNCHRONIZER ASSY. (2ND/4TH)

1 - -
375 8-97104-026-0 8-97104-026-0 / SYNCHRONIZER ASSY. (2ND/4TH)

1 - -
