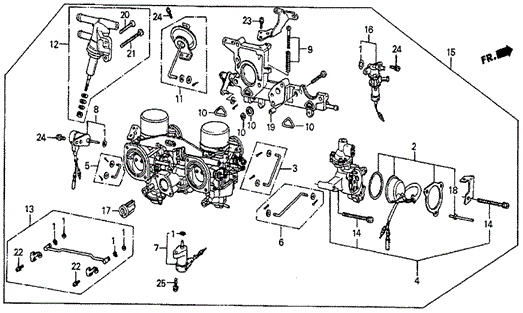

CARBURETOR ASSY. (VF02B C) in ENGINE/CARBURETOR ('83) for 1983 Honda PRELUDE

CARBURETOR ASSY. (VF02B C) in ENGINE/CARBURETOR ('83) for 1983 Honda PRELUDE #1
2
  • CAP SET, CHOKE - $44.27
1
  • GASKET SET, CARBURETOR - $39.34
23
  • SCREW-WASHER (5X12) - $0.48
10
  • GASKET SET
1
  • GASKET SET, CARBURETOR - $39.34
6
  • ROD SET
22
  • SCREW-WASHER (4X8) - $0.48
9
  • SCREW SET
4
  • CASE SET, BIMETAL
19
  • PIN, KNOCK
14
  • BOLT-WASHER (5X25)
10
  • GASKET SET
22
  • SCREW-WASHER (4X8) - $0.48
24
  • SCREW-WASHER (5X14) - $0.46
25
  • SCREW-WASHER (5X16) - $0.47
1
  • GASKET SET, CARBURETOR - $39.34
18
  • RIVET
13
  • JOINT SET, FUEL
24
  • SCREW-WASHER (5X14) - $0.46
17
  • FUNNEL, AIR
1
  • GASKET SET, CARBURETOR - $39.34
20
  • SCREW, PAN (6X25) - $0.53
5
  • ROD SET
1
  • GASKET SET, CARBURETOR - $39.34
11
  • OPENER SET, DASHPOT
7
  • SOLENOID, SLOW CUT - $25.82
15
  • CARBURETOR ASSY. (VF02B C)
  • CARBURETOR ASSY. - $462.87
  • CARBURETOR ASSY. (VF03B C)
3
  • ROD SET, CHOKE
10
  • GASKET SET
1
  • GASKET SET, CARBURETOR - $39.34
12
  • VALVE ASSY., THERMO WAX
21
  • SCREW, PAN (6X35)
16
  • VALVE ASSY., VENT SOLENOID
14
  • BOLT-WASHER (5X25)
10
  • GASKET SET
24
  • SCREW-WASHER (5X14) - $0.46
1
  • GASKET SET, CARBURETOR - $39.34
8
  • SOLENOID, MAIN CUT
No. Part # Part # / Description Qty Req. List Price Price
1 16010-PC6-662 16010-PC6-662 / GASKET SET, CARBURETOR

2 $55.57 $39.34
2 16014-PC6-661 16014-PC6-661 / CAP SET, CHOKE

1 $62.52 $44.27
3 16017-PC6-005 16017-PC6-005 / ROD SET, CHOKE

1 - -
4 16020-PC6-672 16020-PC6-672 / CASE SET, BIMETAL

1 - -
5 16025-PC6-005 16025-PC6-005 / ROD SET

1 - -
6 16032-PC6-005 16032-PC6-005 / ROD SET

1 - -
7 16035-PC6-005 16035-PC6-005 / SOLENOID, SLOW CUT

1 $36.47 $25.82
8 16036-PC6-305 16036-PC6-305 / SOLENOID, MAIN CUT

1 - -
9 16038-PC6-661 16038-PC6-661 / SCREW SET

1 - -
10 16039-PC6-005 16039-PC6-005 / GASKET SET

1 - -
11 16043-PC6-005 16043-PC6-005 / OPENER SET, DASHPOT

1 - -
12 16044-PC6-005 16044-PC6-005 / VALVE ASSY., THERMO WAX

1 - -
13 16047-PC6-005 16047-PC6-005 / JOINT SET, FUEL

1 - -
14 16083-PC2-005 16083-PC2-005 / BOLT-WASHER (5X25)

2 - -
15 16100-PC6-307 16100-PC6-307 / CARBURETOR ASSY. (VF02B C)

1 - -
15 16100-PC6-407 16100-PC6-407 / CARBURETOR ASSY.

1 $653.77 $462.87
15 16100-PC6-405 16100-PC6-405 / CARBURETOR ASSY. (VF03B C)

1 - -
16 16120-PC6-661 16120-PC6-661 / VALVE ASSY., VENT SOLENOID

1 - -
17 16141-PC6-005 16141-PC6-005 / FUNNEL, AIR

1 - -
18 16158-PB2-691 16158-PB2-691 / RIVET

3 - -
19 16178-463-004 16178-463-004 / PIN, KNOCK

4 - -
20 93500-06025-0H 93500-06025-0H / SCREW, PAN (6X25)

1 $0.75 $0.53
21 93500-06035-0H 93500-06035-0H / SCREW, PAN (6X35)

1 - -
22 93892-04008-08 93892-04008-08 / SCREW-WASHER (4X8)

2 $0.68 $0.48
23 93892-05012-08 93892-05012-08 / SCREW-WASHER (5X12)

3 $0.68 $0.48
24 93892-05014-08 93892-05014-08 / SCREW-WASHER (5X14)

5 $0.65 $0.46
25 93892-05016-08 93892-05016-08 / SCREW-WASHER (5X16)

1 $0.67 $0.47
