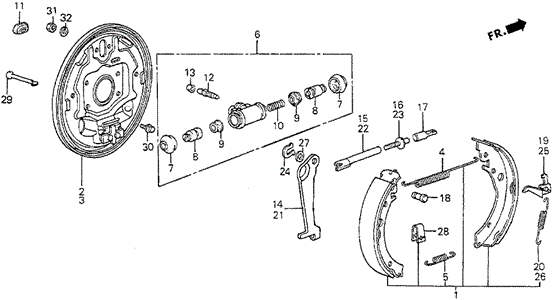

PLATE, L. RR. BRAKE BACKING in CHASSIS/REAR BRAKE SHOE for 1983 Honda PRELUDE

PLATE, L. RR. BRAKE BACKING in CHASSIS/REAR BRAKE SHOE for 1983 Honda PRELUDE #1
31
  • NUT, HEX. (6MM) - $0.48
7
  • COVER, DUST - $2.74
30
  • BOLT-WASHER (8X12)
24
  • U-CLIP - $0.40
20
  • SPRING, R. ADJUSTER - $2.74
9
  • CUP, PISTON - $2.42
  • CUP, PISTON - $2.94
12
  • SCREW, BLEEDER - $4.18
27
  • WASHER, WAVE - $1.60
22
  • ROD A, L. CONNECTING - $3.73
  • ROD A, L. CONNECTING - $3.73
25
  • LEVER, L. ADJUSTER - $6.37
7
  • COVER, DUST - $2.74
5
  • SPRING B, BRAKE SHOE RETURN - $1.20
6
  • CYLINDER ASSY., RR. WHEEL
  • CYLINDER ASSY., RR. WHEEL - $29.95
15
  • ROD A, R. CONNECTING - $3.73
  • ROD A, R. CONNECTING - $3.73
14
  • LEVER, R. PARKING BRAKE
8
  • PISTON, WHEEL CYLINDER
  • PISTON, WHEEL CYLINDER
11
  • PLUG, ADJUSTER - $0.63
13
  • CAP, BLEEDER SCREW - $2.05
32
  • WASHER, SPRING (6MM) - $0.42
28
  • SPRING, SHOE CLAMP - $0.76
19
  • LEVER, R. ADJUSTER - $6.37
8
  • PISTON, WHEEL CYLINDER
  • PISTON, WHEEL CYLINDER
26
  • SPRING, L. ADJUSTER
29
  • PIN, TENSIONER - $1.81
16
  • BOLT, R. ADJUSTER - $4.53
  • BOLT, R. ADJUSTER - $4.53
  • BOLT, R. ADJUSTER - $4.53
2
  • PLATE, R. RR. BRAKE BACKING
23
  • BOLT, L. ADJUSTER - $4.53
  • BOLT, L. ADJUSTER - $4.53
9
  • CUP, PISTON - $2.42
  • CUP, PISTON - $2.94
3
  • PLATE, L. RR. BRAKE BACKING
1
  • SHOE SET, RR. BRAKE
4
  • SPRING A, BRAKE SHOE RETURN - $1.10
21
  • LEVER, L. PARKING BRAKE
10
  • SPRING, RR. WHEEL CYLINDER - $2.11
18
  • PIN, PARKING BRAKE LEVER - $1.95
17
  • ROD B, CONNECTING - $2.64
No. Part # Part # / Description Qty Req. List Price Price
1 43053-SA5-505 43053-SA5-505 / SHOE SET, RR. BRAKE

1 - -
2 43110-SA5-033 43110-SA5-033 / PLATE, R. RR. BRAKE BACKING

1 - -
3 43120-SA5-033 43120-SA5-033 / PLATE, L. RR. BRAKE BACKING

1 - -
4 43171-S04-013 43171-S04-013 / SPRING A, BRAKE SHOE RETURN

2 $1.55 $1.10
5 43172-S04-003 43172-S04-003 / SPRING B, BRAKE SHOE RETURN

2 $1.70 $1.20
6 43300-671-633 43300-671-633 / CYLINDER ASSY., RR. WHEEL

2 - -
6 43300-SB0-671 43300-SB0-671 / CYLINDER ASSY., RR. WHEEL

2 $42.30 $29.95
7 43315-SN4-003 43315-SN4-003 / COVER, DUST

4 $3.87 $2.74
8 43321-692-003 43321-692-003 / PISTON, WHEEL CYLINDER

4 - -
8 43321-SA3-681 43321-SA3-681 / PISTON, WHEEL CYLINDER

4 - -
9 43341-602-003 43341-602-003 / CUP, PISTON

4 $3.42 $2.42
9 43322-663-003 43322-663-003 / CUP, PISTON

4 $4.15 $2.94
10 43323-663-003 43323-663-003 / SPRING, RR. WHEEL CYLINDER

2 $2.98 $2.11
11 43345-S04-003 43345-S04-003 / PLUG, ADJUSTER

2 $0.88 $0.63
12 43352-567-000 43352-567-000 / SCREW, BLEEDER

2 $5.90 $4.18
13 43353-548-003 43353-548-003 / CAP, BLEEDER SCREW

2 $2.90 $2.05
14 43361-SE0-003 43361-SE0-003 / LEVER, R. PARKING BRAKE

1 - -
15 43362-S5A-013 43362-S5A-013 / ROD A, R. CONNECTING

1 $5.27 $3.73
15 43362-S5A-013 43362-S5A-013 / ROD A, R. CONNECTING

1 $5.27 $3.73
16 43363-S5A-013 43363-S5A-013 / BOLT, R. ADJUSTER

1 $6.40 $4.53
16 43363-S5A-013 43363-S5A-013 / BOLT, R. ADJUSTER

1 $6.40 $4.53
16 43363-S5A-013 43363-S5A-013 / BOLT, R. ADJUSTER

1 $6.40 $4.53
17 43364-S5A-003 43364-S5A-003 / ROD B, CONNECTING

2 $3.73 $2.64
18 43365-SA5-003 43365-SA5-003 / PIN, PARKING BRAKE LEVER

2 $2.75 $1.95
19 43366-SA5-003 43366-SA5-003 / LEVER, R. ADJUSTER

1 $9.00 $6.37
20 43367-SA5-003 43367-SA5-003 / SPRING, R. ADJUSTER

1 $3.87 $2.74
21 43371-SE0-003 43371-SE0-003 / LEVER, L. PARKING BRAKE

1 - -
22 43372-S5A-013 43372-S5A-013 / ROD A, L. CONNECTING

1 $5.27 $3.73
22 43372-S5A-013 43372-S5A-013 / ROD A, L. CONNECTING

1 $5.27 $3.73
23 43373-S5A-013 43373-S5A-013 / BOLT, L. ADJUSTER

1 $6.40 $4.53
23 43373-S5A-013 43373-S5A-013 / BOLT, L. ADJUSTER

1 $6.40 $4.53
24 43375-SA0-003 43375-SA0-003 / U-CLIP

2 $0.57 $0.40
25 43376-SA5-003 43376-SA5-003 / LEVER, L. ADJUSTER

1 $9.00 $6.37
26 43377-SA5-003 43377-SA5-003 / SPRING, L. ADJUSTER

1 - -
27 43379-SA5-003 43379-SA5-003 / WASHER, WAVE

2 $2.27 $1.60
28 45172-S04-003 45172-S04-003 / SPRING, SHOE CLAMP

4 $1.07 $0.76
29 45175-SA0-013 45175-SA0-013 / PIN, TENSIONER

4 $2.55 $1.81
30 93402-08012-08 93402-08012-08 / BOLT-WASHER (8X12)

8 - -
31 94001-06080-0S 94001-06080-0S / NUT, HEX. (6MM)

4 $0.68 $0.48
32 94111-06800 94111-06800 / WASHER, SPRING (6MM)

4 $0.60 $0.42
