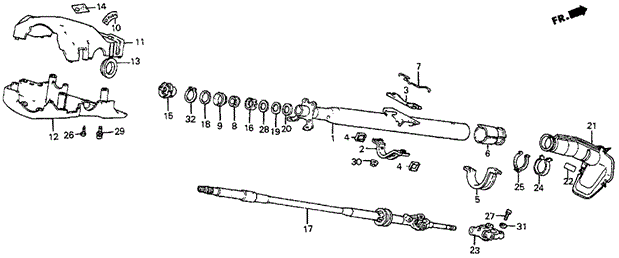

SHAFT, STEERING in CHASSIS/STEERING COLUMN (1) for 1983 Honda PRELUDE

SHAFT, STEERING in CHASSIS/STEERING COLUMN (1) for 1983 Honda PRELUDE #1
11
  • COVER, COLUMN (UPPER)
4
  • BAND, RUBBER
15
  • CAM, TURN SIGNAL SWITCH CANCEL(WHITE) (TEC)
20
  • WASHER B, STEERING SHAFT - $2.17
27
  • BOLT, STEERING YOKE (8X22) - $1.81
2
  • BRACKET, COLUMN (UPPER)
29
  • SCREW-WASHER (5X12) - $0.48
10
  • LABEL, IGNITION SWITCH
24
  • CLIP A, JOINT COVER
14
  • LABEL, TURN SIGNAL
3
  • PLATE, BENDING
21
  • COVER, STEERING JOINT
8
  • BUSH, STEERING COLUMN
28
  • WASHER, PLAIN (20MM)
31
  • WASHER, SPRING (8MM) - $0.38
30
  • NUT-WASHER (8MM) - $0.31
23
  • JOINT B, STEERING COLUMN
6
  • COLLAR, STEERING RETAINER - $6.43
18
  • WASHER, STEERING SHAFT
9
  • RING, COLUMN THRUST - $7.19
13
  • RING, COLUMN COVER - $3.91
12
  • COVER, COLUMN (LOWER)
25
  • CLIP B, JOINT COVER - $4.52
16
  • RING, HORN GROUND
19
  • WASHER A, STEERING SHAFT
26
  • SCREW, TAPPING (4X16) (PO) - $0.39
17
  • SHAFT, STEERING
32
  • CIRCLIP, OUTER (18MM) - $0.54
5
  • HOLDER B, STEERING COLUMN
1
  • COLUMN, STEERING
4
  • BAND, RUBBER
No. Part # Part # / Description Qty Req. List Price Price
1 53210-SB0-661 53210-SB0-661 / COLUMN, STEERING

1 - -
2 53211-SB0-930 53211-SB0-930 / BRACKET, COLUMN (UPPER)

1 - -
3 53212-SB0-930ZZ 53212-SB0-930ZZ / PLATE, BENDING

1 - -
4 53213-657-000 53213-657-000 / BAND, RUBBER

2 - -
5 53216-SB0-670 53216-SB0-670 / HOLDER B, STEERING COLUMN

1 - -
6 53217-SF0-000 53217-SF0-000 / COLLAR, STEERING RETAINER

1 $9.08 $6.43
8 53221-SA0-003 53221-SA0-003 / BUSH, STEERING COLUMN

1 - -
9 53224-SA5-003 53224-SA5-003 / RING, COLUMN THRUST

1 $10.15 $7.19
10 53231-SB0-000 53231-SB0-000 / LABEL, IGNITION SWITCH

1 - -
11 53233-SB0-660 53233-SB0-660 / COVER, COLUMN (UPPER)

1 - -
12 53234-SB0-660 53234-SB0-660 / COVER, COLUMN (LOWER)

1 - -
13 53235-SA5-010 53235-SA5-010 / RING, COLUMN COVER

1 $5.52 $3.91
14 53244-SB0-000 53244-SB0-000 / LABEL, TURN SIGNAL

1 - -
15 53271-692-003 53271-692-003 / CAM, TURN SIGNAL SWITCH CANCEL(WHITE) (TEC)

1 - -
16 53275-SB0-930 53275-SB0-930 / RING, HORN GROUND

1 - -
17 53310-SB0-671 53310-SB0-671 / SHAFT, STEERING

1 - -
18 53311-692-000 53311-692-000 / WASHER, STEERING SHAFT

1 - -
19 53312-SA0-660 53312-SA0-660 / WASHER A, STEERING SHAFT

1 - -
20 53313-SA7-003 53313-SA7-003 / WASHER B, STEERING SHAFT

1 $3.07 $2.17
21 53320-SB0-672 53320-SB0-672 / COVER, STEERING JOINT

1 - -
23 53323-SA5-670 53323-SA5-670 / JOINT B, STEERING COLUMN

1 - -
24 53325-SB0-000 53325-SB0-000 / CLIP A, JOINT COVER

1 - -
25 53326-SB0-000 53326-SB0-000 / CLIP B, JOINT COVER

1 $6.38 $4.52
26 93913-24420 93913-24420 / SCREW, TAPPING (4X16) (PO)

4 $0.55 $0.39
27 90135-579-010 90135-579-010 / BOLT, STEERING YOKE (8X22)

2 $2.55 $1.81
28 90505-SB0-930 90505-SB0-930 / WASHER, PLAIN (20MM)

1 - -
29 93891-05012-07 93891-05012-07 / SCREW-WASHER (5X12)

2 $0.68 $0.48
30 94070-08080 94070-08080 / NUT-WASHER (8MM)

2 $0.43 $0.31
31 94111-08800 94111-08800 / WASHER, SPRING (8MM)

2 $0.53 $0.38
32 94510-18000 94510-18000 / CIRCLIP, OUTER (18MM)

1 $0.77 $0.54
